met_check_dt.c File Reference

Check model time step based on given meteorological data. More...

#include "mptrac.h"

Go to the source code of this file.

Functions
void	usage (void)
	Print command-line help. More...
int	main (int argc, char *argv[])

Detailed Description

Check model time step based on given meteorological data.

Definition in file met_check_dt.c.

Function Documentation

usage()

void usage

(

void

)

Print command-line help.

Definition at line 209 of file met_check_dt.c.

        {

  printf("\nMPTRAC met_check_dt tool.\n\n");
  printf("Check model time-step constraints for meteorological data.\n");
  printf("\n");
  printf("Usage:\n");
  printf("  met_check_dt <ctl> <dt_file> <met> [KEY VALUE ...]\n");
  printf("\n");
  printf("Arguments:\n");
  printf("  <ctl>      Control file.\n");
  printf("  <dt_file>  Output table for time-step diagnostics.\n");
  printf("  <met>      Meteorological input file.\n");
  printf("  [KEY VALUE]  Optional control parameters.\n");
  printf("\nFurther information:\n");
  printf("  Manual: https://slcs-jsc.github.io/mptrac/\n");
}

main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 51 of file met_check_dt.c.

                {

  ctl_t ctl;

  clim_t *clim;

  met_t *met;

  dd_t *dd;

  /* Print usage information... */
  USAGE;

  /* Check arguments... */
  if (argc < 4)
    ERRMSG("Missing or invalid command-line arguments.\n\n"
           "Usage: met_check_dt <ctl> <dt_file> <met> [KEY VALUE ...]\n\n"
           "Use -h for full help.");

  /* Allocate... */
  mptrac_alloc(NULL, NULL, &clim, &met, NULL, NULL, NULL, &dd);

  /* Read control parameters... */
  mptrac_read_ctl(argv[1], argc, argv, &ctl);
  const double pbl_trans = ctl.turb_pbl_trans;
  const double dx = 1e3 * scan_ctl(argv[1], argc, argv, "DX", -1, "", NULL);
  const double c_max = scan_ctl(argv[1], argc, argv, "CMAX", -1, "0.5", NULL);
  const double n_max = scan_ctl(argv[1], argc, argv, "NMAX", -1, "0.3", NULL);

  /* Read climatological data... */
  mptrac_read_clim(&ctl, clim);

  /* Read meteo data... */
  if (!mptrac_read_met(argv[3], &ctl, clim, met, dd))
    ERRMSG("Cannot open file!");

  /* Create output file... */
  FILE *out;
  LOG(1, "Write time step data file: %s", argv[2]);
  if (!(out = fopen(argv[2], "w")))
    ERRMSG("Cannot create file!");

  /* Write header... */
  fprintf(out,
          "# $1 = height [km]\n"
          "# $2 = time step for horizontal advection [s]\n"
          "# $3 = time step for vertical advection [s]\n"
          "# $4 = time step for horizontal diffusion [s]\n"
          "# $5 = time step for vertical diffusion [s]\n"
          "# $6 = time step for PBL transition diffusion [s]\n"
          "# $7 = time step for PBL depth diffusion [s]\n\n");

  /* Loop over pressure levels... */
  for (int ip = 1; ip < met->np - 1; ip++) {

    /* Init... */
    double dt_x_min = 1e100;
    double dt_p_min = 1e100;
    double dt_dx_min = 1e100;
    double dt_dp_min = 1e100;
    double dt_pbl_min = 1e100;
    double dt_pbl_depth_min = 1e100;

    /* Loop over columns... */
#pragma omp parallel for default(shared) collapse(2) reduction(min:dt_x_min,dt_p_min,dt_dx_min,dt_dp_min,dt_pbl_min,dt_pbl_depth_min)
    for (int ix = 0; ix < met->nx; ix++)
      for (int iy = 1; iy < met->ny - 1; iy++) {

        /* Check advection... */
        const double vh =
          sqrt(SQR(met->u[ix][iy][ip]) + SQR(met->v[ix][iy][ip]));
        const double dt_x = fabs(c_max * dx / vh);
        if (vh != 0)
          dt_x_min = MIN(dt_x, dt_x_min);

        const double dp = 0.5 * fabs(met->p[ip + 1] - met->p[ip - 1]);
        const double dt_p = fabs(c_max * dp / met->w[ix][iy][ip]);
        if (met->w[ix][iy][ip] != 0)
          dt_p_min = MIN(dt_p, dt_p_min);

        /* Get layer weights... */
        const double pt = clim_tropo(clim, met->time,
                                     ctl.met_coord_type ==
                                     0 ? met->lat[iy] : ctl.met_utm_ref_lat);
        const double wpbl =
          pbl_weight_dt(met->p[ip], met->pbl[ix][iy], met->ps[ix][iy],
                        pbl_trans);
        const double wtrop = tropo_weight_dt(met->p[ip], pt) * (1.0 - wpbl);
        const double wstrat = 1.0 - wpbl - wtrop;

        /* Check layer-aware diffusion... */
        const double dx_loc = wpbl * ctl.turb_dx_pbl
          + wtrop * ctl.turb_dx_trop + wstrat * ctl.turb_dx_strat;
        if (dx_loc > 0) {
          const double dt_dx = 0.5 * SQR(n_max * dx) / dx_loc;
          dt_dx_min = MIN(dt_dx, dt_dx_min);
        }

        const double dz_loc = wpbl * ctl.turb_dz_pbl
          + wtrop * ctl.turb_dz_trop + wstrat * ctl.turb_dz_strat;
        if (dz_loc > 0) {
          const double dt_dp = 0.5 * SQR(n_max * dp)
            / (SQR(met->p[ip] / (100. * H0)) * dz_loc);
          dt_dp_min = MIN(dt_dp, dt_dp_min);
        }

        /* Check PBL transition diffusion... */
        if (pbl_trans > 0 && met->ps[ix][iy] > met->pbl[ix][iy]
            && met->p[ip] <= met->pbl[ix][iy]
            && met->p[ip] >= met->pbl[ix][iy]
            - pbl_trans * (met->ps[ix][iy] - met->pbl[ix][iy])) {
          const double p0 = met->pbl[ix][iy];
          const double p1 = p0 - pbl_trans * (met->ps[ix][iy] - p0);
          const double dz_trans = 1e3 * fabs(Z(p1) - Z(p0));
          const double dz_max = MAX(ctl.turb_dz_pbl, ctl.turb_dz_trop);
          if (dz_trans > 0 && dz_max > 0) {
            const double dt_trans = 0.5 * SQR(n_max * dz_trans) / dz_max;
            dt_pbl_min = MIN(dt_trans, dt_pbl_min);
          }
        }

        /* Check PBL depth diffusion on the full PBL scale. */
        if (met->ps[ix][iy] > met->pbl[ix][iy]
            && met->p[ip] >= met->pbl[ix][iy]) {
          const double dz_pbl =
            1e3 * fabs(Z(met->pbl[ix][iy]) - Z(met->ps[ix][iy]));
          if (dz_pbl > 0 && ctl.turb_dz_pbl > 0) {
            const double dt_pbl_depth =
              0.5 * SQR(n_max * dz_pbl) / ctl.turb_dz_pbl;
            dt_pbl_depth_min = MIN(dt_pbl_depth, dt_pbl_depth_min);
          }
        }
      }

    /* Write output... */
    const double out_dt_dx = dt_dx_min < 1e99 ? dt_dx_min : NAN;
    const double out_dt_dp = dt_dp_min < 1e99 ? dt_dp_min : NAN;
    const double out_dt_pbl = dt_pbl_min < 1e99 ? dt_pbl_min : NAN;
    const double out_dt_pbl_depth =
      dt_pbl_depth_min < 1e99 ? dt_pbl_depth_min : NAN;
    fprintf(out, "%g %g %g %g %g %g %g\n", Z(met->p[ip]), dt_x_min, dt_p_min,
            out_dt_dx, out_dt_dp, out_dt_pbl, out_dt_pbl_depth);
  }

  /* Close output file... */
  fclose(out);

  /* Free... */
  mptrac_free(NULL, NULL, clim, met, NULL, NULL, NULL, dd);

  return EXIT_SUCCESS;
}

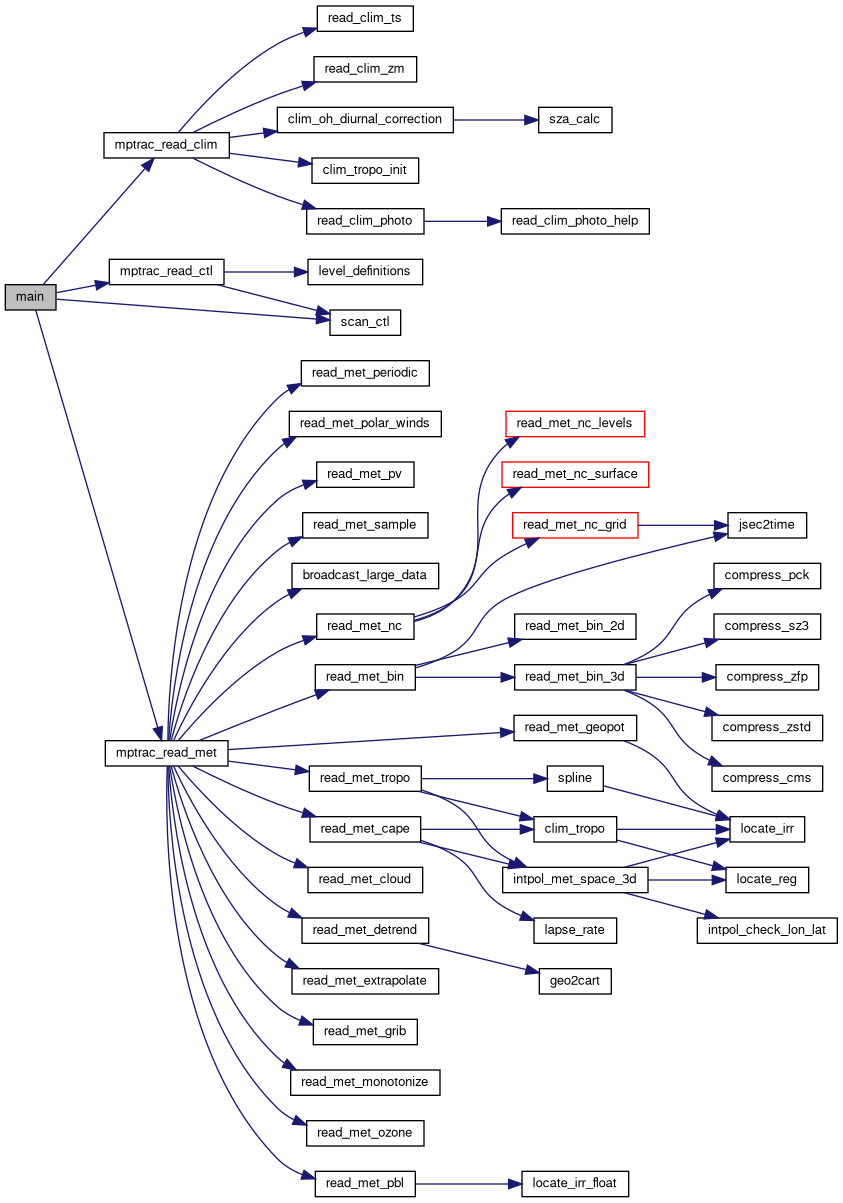

Here is the call graph for this function:
